How to Tie the Sliding Gear Toggle
Usage
The Sliding Gear Toggle gives you a reusable stop-and-slide point on a cord without buying a plastic cord-lock. Tie it once into paracord and you get a small coiled bead that grips a second cord or strap threaded through it, yet still slides by hand whenever you want to move it - the same job a manufactured cord-lock does, built entirely out of cord.
Why Learn This Knot
It's a useful DIY substitute for hardware you'd otherwise buy: a bead that holds a strap or line under light tension and releases the moment you slide it, no clip or lock involved. To build out your library of knots and toggles, the Knot IQ app catalogs hundreds you can step through at your own pace.
Common Uses
-
Hands-Free Carry:
- Building an adjustable sliding strap for carrying an umbrella or similar light item.
-
Gear Organization:
- Lashing rope or cord to a pack or rucksack through its webbing loops, with a quick slide-to-release finish.
- General light-duty jobs reported by users: a camping-chair strap, hanging gear on a work vehicle, tensioning a shoelace.
The toggle is only as good as the cord it's tied in, and it's built and finished on paracord specifically - the sheath melts into a clean bead at the trim step. Practice on our own 750lb Bushcraft Paracord so the finished ends melt and trim the way they're meant to.
ABOK Number
Category
|
How to Tie the Sliding Gear Toggle
Step 1:
Tie a simple overhand knot in the cord, working left over right.
Step 2:
Repeat the same left-over-right pass a second time through the identical crossing point.
Step 3:
Repeat a third time. The resulting triple-pass overhand is the core of the toggle.
Step 4:
Pull it snug in stages and stop the moment two turns show on one face of the coil and a single turn shows on the other.
Step 5:
Using a marlinspike or a similar pick, split open the two-turn face to open a "window" into the coil.
Step 6:
Split open the second face the same way, opening a second window.
Step 7:
Thread the working cord, strap, or item you're attaching through both windows.
Step 8:
Pull each side of the coil individually first to seat it, then pull both sides together at once to cinch the toggle fully around the threaded material.
Step 9:
Trim the cord ends to about 1/8 in (3 mm) on each side.
Step 10:
On paracord, melt the trimmed ends into a bead shape with a lighter. Let it cool before you touch it - molten paracord burns on contact.

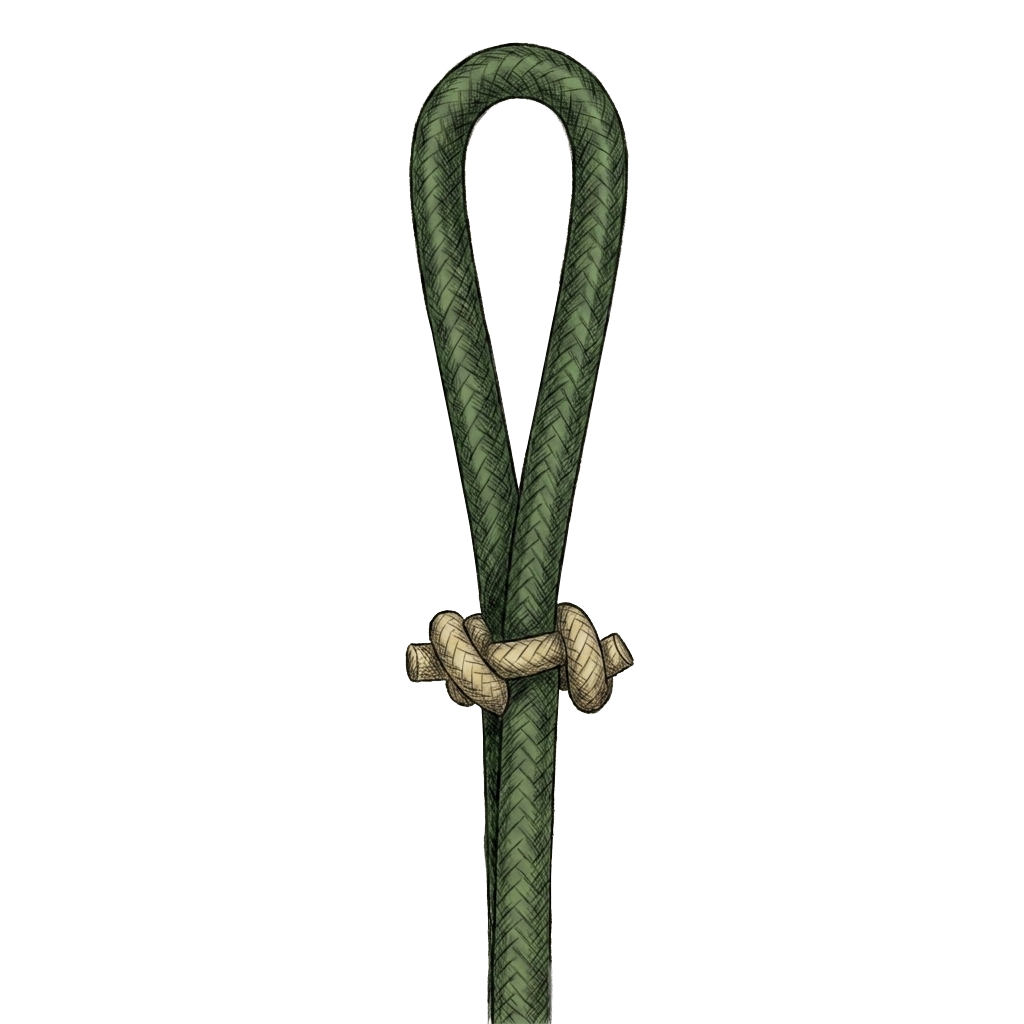

Notable Features
- The core bead is a triple-pass overhand knot, the same coiled structure behind the Capuchin Knot, cinched down instead of left as a fixed stopper.
- Grips by friction alone - no locking tuck inside it, which is exactly why it can still be slid by hand once cinched.
- Finishes two ways: melt the freshly-cut ends into a pull-ring, or tie a second triple-overhand as a small barrel stopper instead.
- Compact once finished - a small coiled bead with roughly 1/8 in (3 mm) of trimmed tail per side.
Similar Knots
Marlinspike Hitch vs. Sliding Gear Toggle
- Pros: The Marlinspike Hitch locks a bight around a rod or spike instantly and releases the moment the spike is pulled out - genuinely faster to release under load, and it's made mid-line with no toggle bead to build first.
- Cons: It needs a rigid pin held in place to work at all; it isn't a self-contained, tool-free bead you can slide back and forth by hand the way the toggle is.
Cow Hitch (Lark's Head) vs. Sliding Gear Toggle
- Pros: The Cow Hitch attaches a loop straight around an object - a ring, a carabiner, another loop - with no bead to build first, and it's about as quick as a hitch gets.
- Cons: It's a fixed attachment point, not something you build once and then slide repeatedly to a new position along a host cord the way the toggle does.
History
This is a 2025 technique with a single, traceable origin: creator Brent Garcia published it on his First Class Amateur YouTube channel on March 8, 2025, as a direct answer to a viewer who wanted a hands-free way to carry an umbrella while walking his dog. No older source names this exact construction. It's a distant descendant of the older toggle-as-fastening idea in Clifford Ashley's 1944 Ashley Book of Knots, though Ashley's toggles are separate hardware threaded through a different eye, not a bead gripping its own threaded cord. Brent of First Class Amateur popularized the knot. Watch the original tutorial for the full build.
Security Level
Garcia is direct about the limit: "it will slip if I pull it hard enough, but tightening it down should be plenty holding power for a simple item." Treat that as the honest ceiling - light gear only, never a load where failure matters. There's no independent testing beyond that one statement, and it isn't reliable on shock cord or bungee; stick to ordinary paracord for a dependable grip.
Downsides
Not rated for heavy or critical loads under any circumstance - light-duty gear-organizing only, not rigging hardware. It's a fussier build than most knots too: ten-plus steps, a marlinspike for the windows, and a two-stage cinch. Because the grip is friction only, a slick or stretchy host cord can defeat it - keep it to ordinary paracord.
FAQ
Can you tie this with a single strand instead of two separate cords?
Nobody's confirmed it. What's shown is always two cords: the bead is tied in one, then a second, separate cord or strap is threaded through the two windows before the final cinch. That second cord is what makes it a toggle instead of a plain stopper knot.
Does it work on shock cord or bungee?
The one report we've seen says no - paracord toggles slipped on shock cord for that user. The mechanism explains why: the bead holds by friction alone, and an elastic host that stretches and thins under a pull is close to the worst case for that kind of grip. Stick to ordinary paracord.
Can you adjust the length of the loop it's tied on?
Partly. The toggle slides along its host cord by hand while still gripping, which is how you change strap length on the umbrella carry or tension and release the pack lashing. What it doesn't give you is a bigger or smaller grip after the fact - the hold strength is fixed by how hard you cinched it when you built it.
Important Notes on Safety
This toggle is not rated for heavy or life-safety loads. Its creator's only performance statement is that it slips under a hard enough pull, and no independent testing says otherwise - never use it anywhere a failure could cause harm. The finish also involves molten paracord: let the melted ends cool fully before you touch them, or they will burn you.
