How to Tie the Eye Splice
Usage

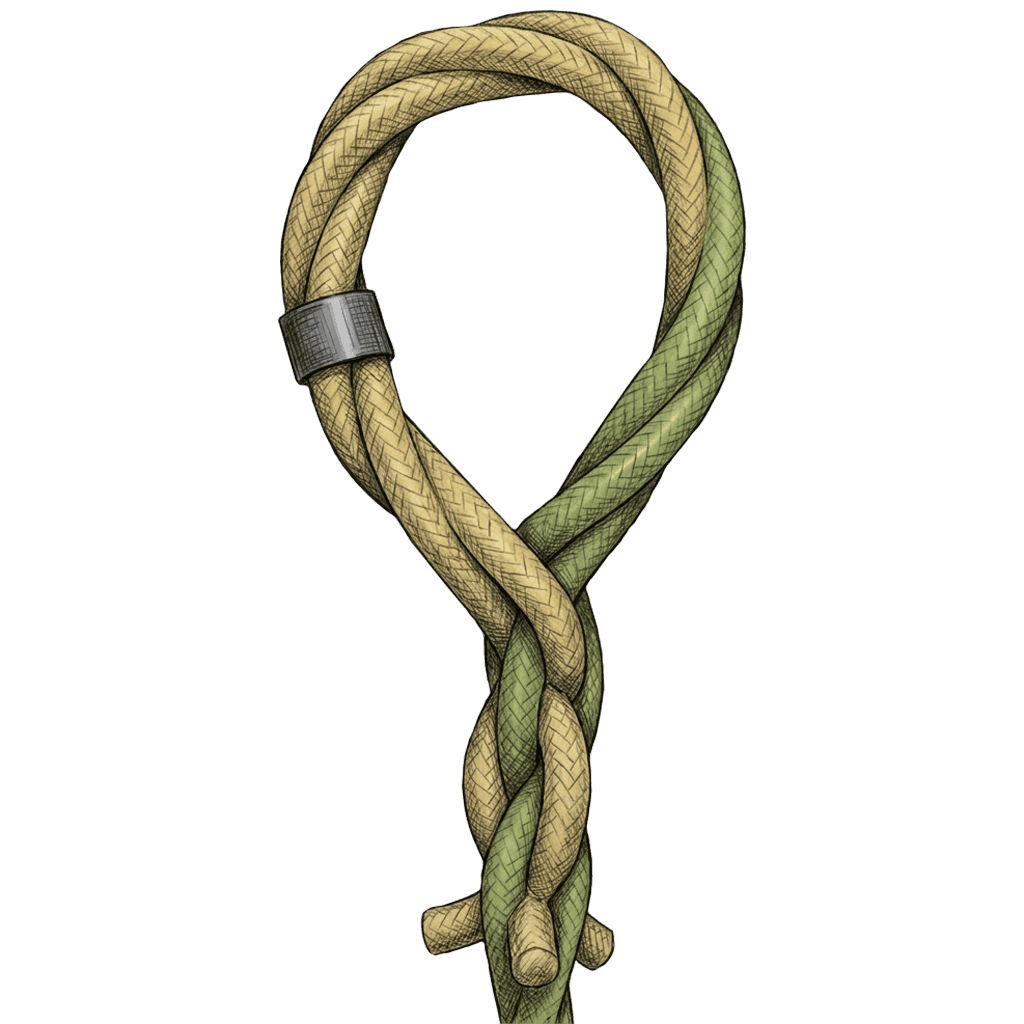

The Eye Splice forms a permanent loop in the end of a rope by unlaying the strands and tucking them back into the rope's own lay, rather than tying a knot. That distinction matters: a knot like the Bowline or the Perfection Loop can be untied and re-tied in seconds but costs a meaningful chunk of the rope's rated strength at the bend. An eye splice trades that flexibility for permanence and strength retention, which is why it's the standard choice wherever a loop needs to stay put for the life of the line — mooring lines, halyards, tow straps, and slings.
Why Learn the Eye Splice?
Anywhere a fixed loop needs to survive years of load cycling, chafe, and weather without slipping or working loose, a spliced eye outperforms a tied loop. It's a foundational three-strand-rope skill for anyone working with dock lines, rigging, or towing gear, and it pairs naturally with a thimble for a hard-wearing, chafe-resistant termination.
Common Uses
Boating / Marine
- Permanent mooring and dock line eyes
- Halyard and sheet terminations
- Anchor rode eyes, often finished with a thimble
Hoisting and Rigging
- Sling eyes for lifting and towing
- Cargo and utility rope loops that must not slip under repeated load
Utility (Everyday Life)
- Any rope end that needs a permanent, non-adjustable loop — clotheslines, tie-downs, animal leads
ABOK Number
Other Names
Category
|
Notable Features
- High Strength Retention: A correctly tucked three-strand eye splice keeps the rope near its full rated strength, far more than a tied loop knot.
- Permanent by Design: Once tucked and worked tight, the splice is not meant to be untied — it's a structural change to the rope, not a temporary configuration.
- Smooth Load Path: Strands are integrated back into the rope's lay instead of being bent sharply around themselves, which is why it holds strength so well.
Similar Knots
Bowline vs. Eye Splice
- Advantage (Bowline): Ties and unties in seconds with no tools or rope preparation.
- Disadvantage (Bowline): A tied loop costs strength at the bend and can work loose under cyclic loading in a way a splice does not.
Perfection Loop vs. Eye Splice
- Advantage (Perfection Loop): Compact, fast, and adjustable to size on the spot with no rope preparation.
- Disadvantage (Perfection Loop): Still a knot — it does not match a splice's strength retention or long-term permanence under load.
Back Splice vs. Eye Splice
- Advantage (Back Splice): Finishes a rope end to stop fraying without forming a loop at all — the right choice when no eye is needed.
- Disadvantage (Back Splice): Doesn't create a loop, so it can't do an eye splice's job; the two solve different problems despite sharing the same tuck technique.
Security Level
Very high. Once tucked, worked, and (ideally) served or taped at the tail ends, a three-strand eye splice does not slip or capsize under normal working loads, which is why it's the default termination for permanent marine and rigging eyes.
Downsides
- Not Adjustable: The loop size is fixed once tucked — there's no re-tightening or resizing without cutting the splice out and starting over.
- Rope-Type Specific: The classic tucked eye splice is built for three-strand (laid) rope; braided and double-braid ropes need their own splicing method, not this one.
- Takes Practice: Getting a neat, even, full-strength splice takes more hand skill and time than tying any loop knot.
Structure
The rope end is unlaid into its three strands, the strands are tucked back under the standing strands of the rope in a pattern that follows the rope's natural lay, and the process is repeated (typically four or five full tucks) so friction under load holds the splice together permanently. Locked-tuck and sailmaker's-tuck variants add extra security for slippery or synthetic line and are covered step-by-step in the Knot IQ app — this article covers the standard tucked method.
How to Tie a Eye Splice
Step 1
Unlay the last several inches of the rope end into its three individual strands, and whip or tape each strand tip so it doesn't unravel further.
Step 2
Form the size of loop you need, then lay the unlaid strands back against the standing part of the rope at the point where the eye closes.
Step 3
Tuck the middle strand under one adjacent strand of the standing rope, against the lay.
Step 4
Tuck the next strand under the following strand of the standing rope, and the last strand under the remaining one, so every original strand is now tucked once, evenly spaced around the rope.
Step 5
Repeat the same over-one, under-one tucking pattern for each strand three to four more times, pulling each tuck snug as you go.
Step 6
Roll and work the splice under your palms to even out the strand tension, trim the tails close, and whip or heat-seal the ends.
FAQ
How much rope strength does an eye splice keep, compared to a knot?
A properly tucked three-strand eye splice retains roughly 90% or more of the rope's original breaking strength, while most tied loop knots reduce it by around 40–50%, per Mazzella's published efficiency data for rope splices, knots, bends, and hitches.
Is the Eye Splice the same as the Back Splice?
No. Both start from the same unlaid-strand tucking technique, but the Back Splice finishes a rope end flat to stop fraying, while the Eye Splice forms a permanent loop. They serve different purposes even though the tuck itself is nearly identical.
Can I eye splice braided or double-braid rope the same way?
Not with this method. This is the classic three-strand (laid rope) tucked eye splice, from Ashley's Sailor's Eye Splice, ABOK #2725. Braided and double-braid ropes (including most Dyneema line) use a different, hollow-braid splicing technique — construction-specific methods are covered separately, not in this article.
Important Notes on Safety
An eye splice is only as strong as its tucks: a rushed or under-tucked splice can slip under load well before the rope itself fails. For anything load-bearing — mooring, towing, rigging, or lifting — practice on scrap rope first, and inspect for even, snug tucks with no daylight showing between strands before trusting it with real weight. Practice the tuck pattern on inexpensive three-strand rope from a Knot Tying Kit before committing to your actual working line.
