How to Tie the Transom Knot

Usage

The Transom Knot is a reliable and versatile knot, useful for both outdoor adventures and everyday tasks. Whether securing kite sticks for a fun project, lashing poles for a temporary structure, or setting up a garden trellis, this knot offers a straightforward and efficient solution. Its simple yet effective design ensures a firm hold at a perfect right angle, and with minimal effort, it can be reinforced for added stability.

Why Learn the Knot

The Transom Knot is a great knot for beginners and seasoned outdoor enthusiasts alike. Knowing this knot means you’ll always have a quick and reliable way to join two poles or sticks at a perfect 90-degree angle, whether you’re setting up a shelter or crafting a frame.

Common Uses

  • Camping and Outdoor Survival:
    • Constructing makeshift shelters or fences.
    • Binding tent poles or sticks for temporary structures.
  • Gardening: Building wooden supports for climbing plants like tomatoes and cucumbers.
  • Crafting and DIY:
    • Assembling kite frames or lightweight cross-shaped structures.
    • Creating temporary crucifixes or display stands.
  • General Utility: Any situation where you need to lash two objects perpendicularly for short-term use.


ABOK Number

(Ashley Book of Knots)
  • #1255, #1182


    Other Names

    • None documented


    Category

    Lashing Knot

    Notable Features

    • Simple Structure: Easy to tie and perfect for quick, temporary solutions.
    • Secure Hold: Holds two poles firmly at a 90-degree angle.
    • Reinforcement: Can be doubled for greater security by tying a second Transom Knot at a right angle.

    Similar Knots

    Constrictor Knot vs. Transom Knot

    • Pros of the Constrictor Knot: Extremely secure and works well for holding multiple objects tightly.
    • Cons: More difficult to untie than the Transom Knot, especially after bearing weight.

    Strangle Knot vs. Transom Knot

    • Pros of the Strangle Knot: Identical tying method without the need for a perpendicular pole, making it versatile for bundling.
    • Cons: Not suitable for creating a 90-degree connection between poles.

    Square Lashing vs. Transom Knot

    • Pros of Square Lashing: Much more secure and suitable for load-bearing or permanent structures.
    • Cons: Requires more time and effort to tie, making it less ideal for quick or temporary setups.

    Diagonal Lashing vs. Transom Knot

    • Pros of Diagonal Lashing: Adds significant strength and stability to the lashing, ideal for long-term or load-bearing connections.
    • Cons: More complex and time-consuming to tie compared to the Transom Knot.

    History

    The Transom Knot is referenced in The Ashley Book of Knots as both ABOK #1255 and #1182. Clifford Ashley describes it as closely related to the Constrictor Knot but structured around a strangle knot. Historically suggested for binding kite sticks, the knot has since found broader application in light-duty lashing tasks, particularly in camping, gardening, and crafting.

    Security Level

    The Transom Knot is considered a light-duty lashing knot. While it holds well under static loads, it is not recommended for long-term or dynamic load applications. For more secure and permanent solutions, consider using Square Lashing or Diagonal Lashing.

    Downsides

    • Limited Durability: Tends to loosen under cyclical loads or extended use.
    • Temporary Applications Only: Best suited for short-term tasks.
    • Dependent on Tightening: Requires firm tightening and possible reinforcement with stopper knots for optimal security.

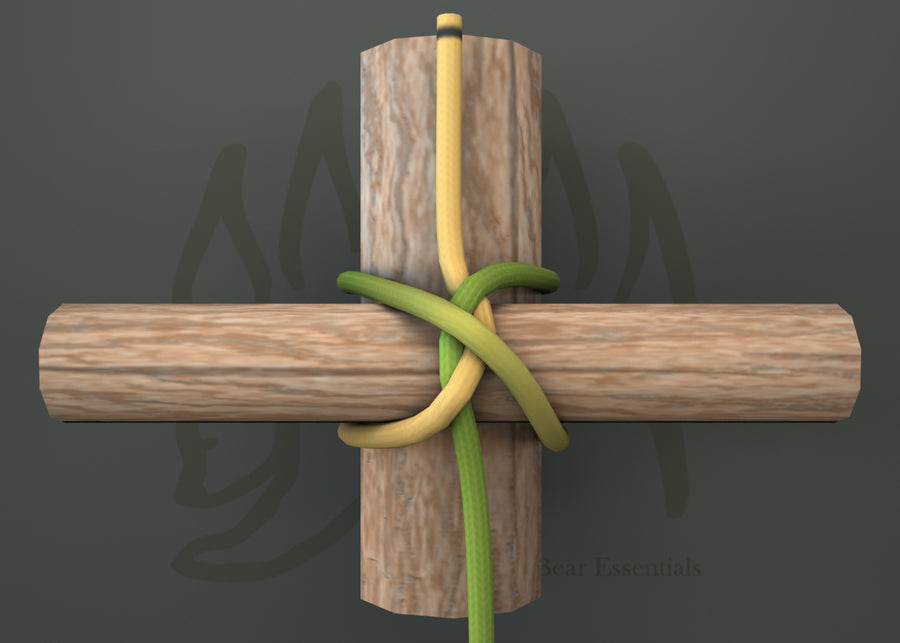

    Structure

    1. Wrap the working end of the rope around the vertical pole from the backside.
    2. Pass the working end over the standing end and around the bottom of the vertical pole.
    3. Pass the working end over the standing end again and under the remaining strands.
    4. Tighten by pulling both ends of the rope in opposite directions.
    5. For added stability, tie a second Transom Knot on the opposite side at a 90-degree angle.

    Pro Tip: Trim the ends of the rope for a cleaner finish or add stopper knots (Overhand or Double Overhand) to reinforce the lashing.

    FAQ

    What is the Transom Knot used for?

    The Transom Knot is primarily used for light-duty lashing tasks, such as binding poles or spars at a 90-degree angle.

    How secure is the Transom Knot?

    While secure for temporary use, it is not recommended for heavy or dynamic loads.

    Can the Transom Knot be reinforced?

    Yes, you can tie a second Transom Knot at a right angle or use stopper knots for added stability.

    What materials can be used for the Transom Knot?

    Any flexible rope or cord works well, provided it can hold tension.

    What’s the difference between the Transom Knot and Square Lashing?

    The Transom Knot is simpler and quicker to tie, while Square Lashing offers greater strength for permanent or load-bearing applications.

    Important Notes on Safety

    The Transom Knot is perfect for light-duty tasks and temporary structures but should not be relied upon for critical or long-term applications. Always ensure the knot is tightly secured, and consider reinforcing it for added reliability.

    Back to blog

    Leave a comment

    Please note, comments need to be approved before they are published.

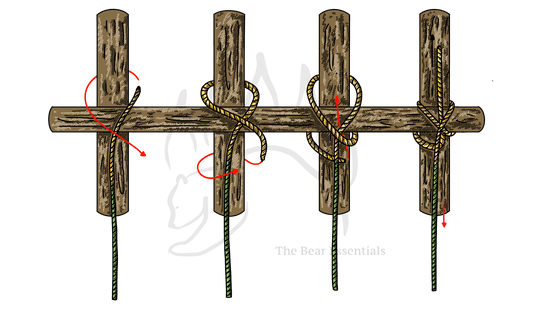

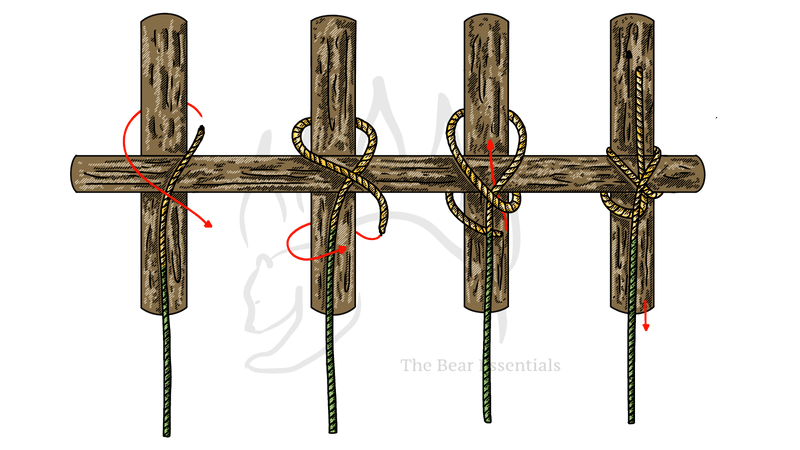

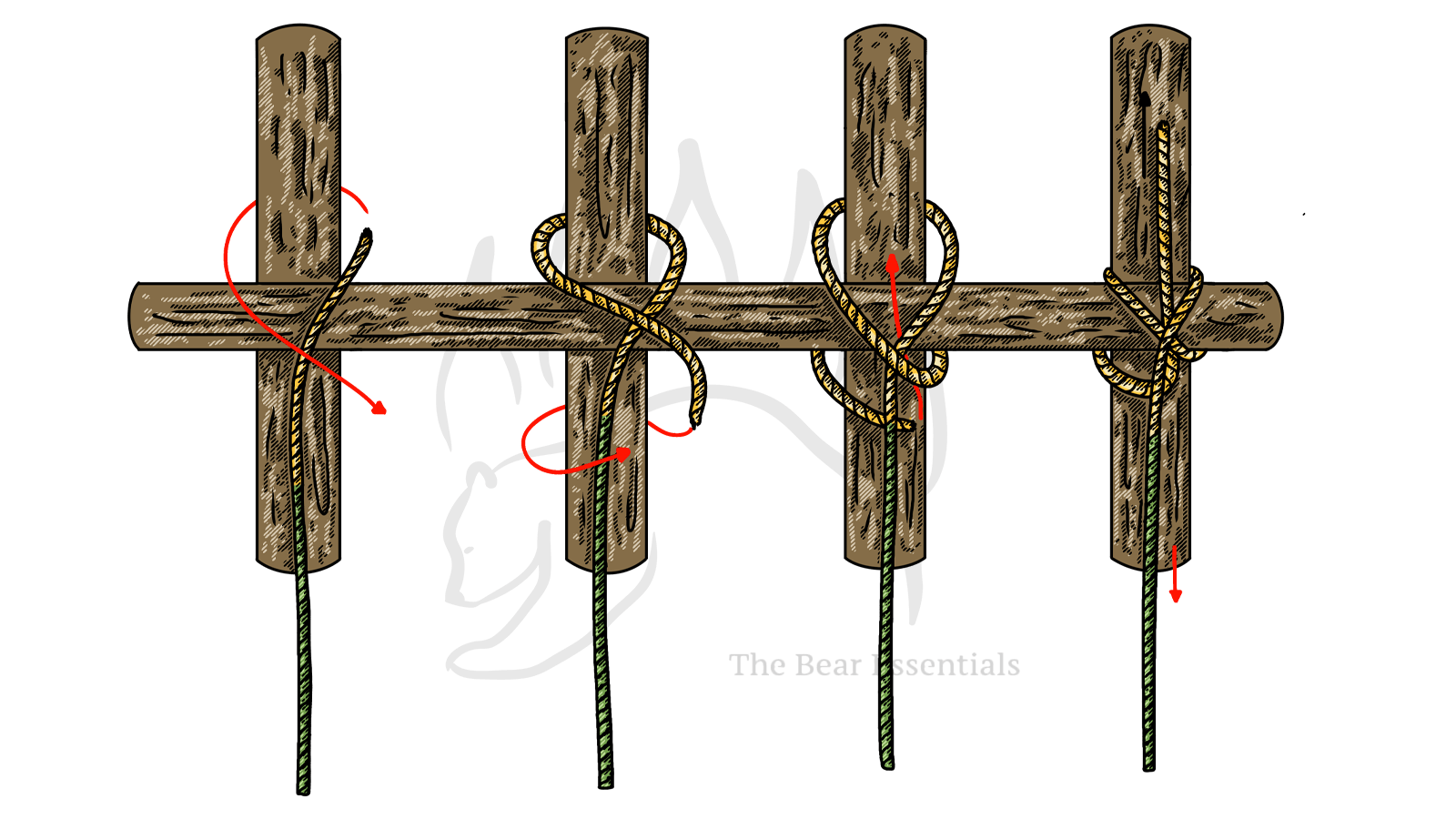

    Step-By-Step Illustration
